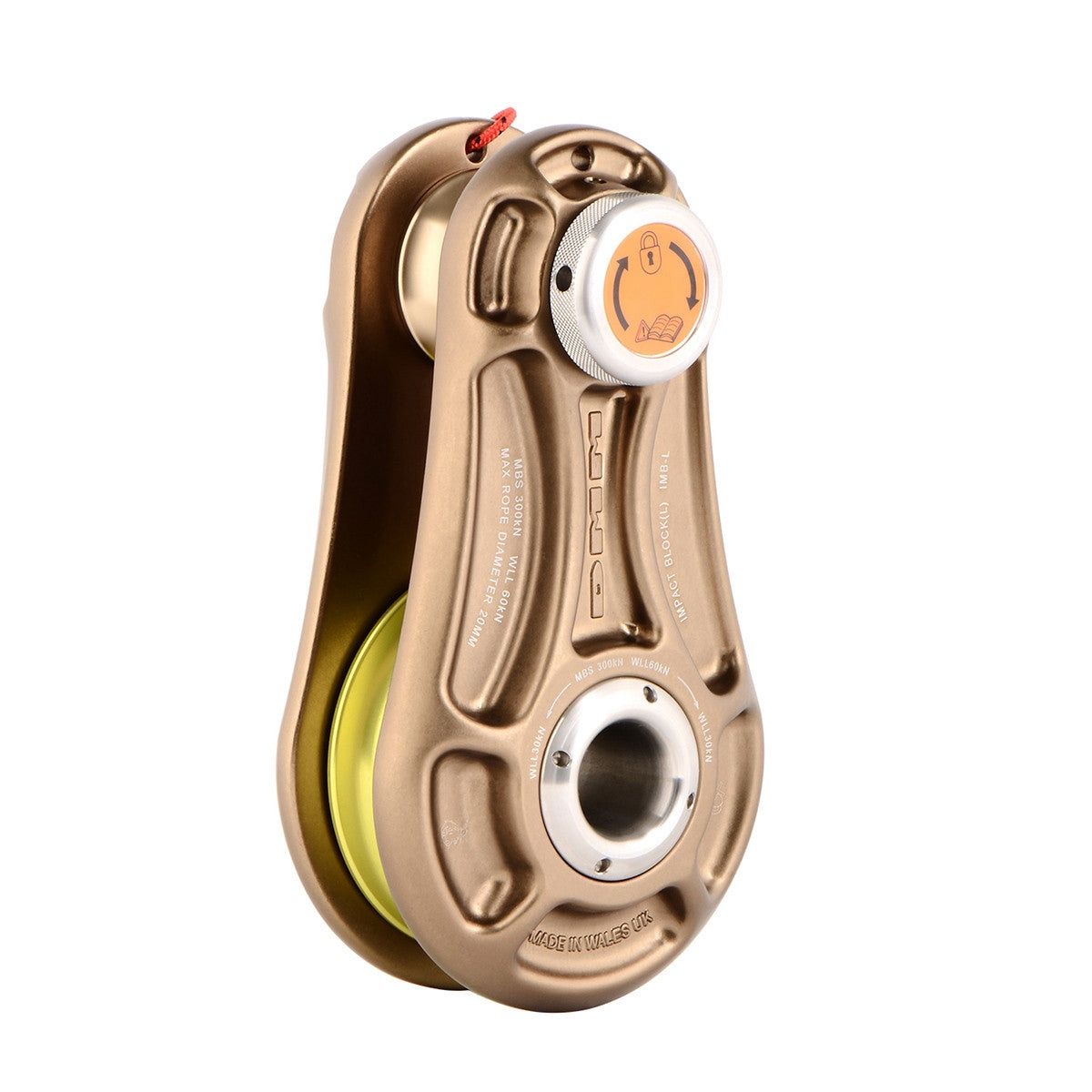

DMM Impact Block Large

Description

• A hugely strong impact block designed to handle huge drops
• Rounded edges to cheekplates maintain low rope abrasion
• Fairlead flares help maintain high working efficiency
• Lightweight attachment sling facilitates hauling of block, sling and rope to the climber and helps with handling, in tree stowage and workshop storage
• Thrust surfaces increase tolerance to external loading of spindle and anchor pin
• Colour coded sheaves
• Individual serial markings

Specifications

• Conforms to EN12278:2007
• Conforms to NFPA 1983(2012 ED) Class G
• Minimum Break Strain (MBS) 300kn
• Working Load Limit (WLL) 60kn
• Max Rope Diameter 16mm
• Dimensions 225 x 120 x 97mm
• Weight 3470g
