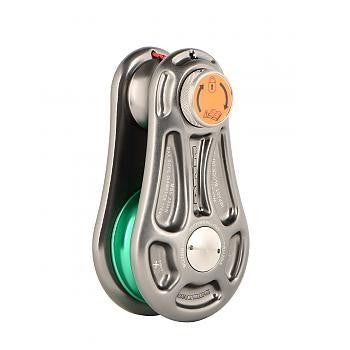

DMM Impact Block Small

Description

• A relatively small and yet hugely strong impact block.
• Designed for use when loads are dropped with considerable impact forces. High quality materials and advanced production processes have ensured a rope friendly, durable and robust block.
• Rounded edges to cheekplates maintain low rope abrasion
• Fairlead flares help maintain high working efficiency
• Thrust surfaces increase tolerance to external loading of spindle and anchor pin
• Colour coded sheaves
• Individual serial markings

Specifications

• Conforms to EN12278:2007
• Conforms to NFPA 1983(2012 Ed) Class G
• Minimum Break Strain (MBS) 200kn
• Working Load Limit (WLL) 40kn
• Max Rope Diameter 16mm
• Dimensions 180 x 100 x 80mm
• Weight 1860g
