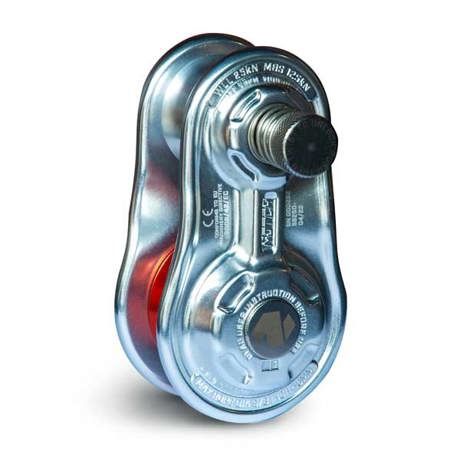

Notch 16mm Rigging Block

This medium-sized rigging block is compact and works best with lines up to 16mm in diameter. Being in the middle of the size range, it's not as heavy as the 19mm rigging block but offers a similar working load (WLL) without the weight. Like the other Notch Rigging Blocks in the family, the NOTCH 16mm Rigging Block features a high wall on the anchor side, improving the sling rope's protection.

*When setting up the block to rig, always position the spring pin to face away from the tree to avoid the potential hazard of the impact, which could damage the pin or push it to the open position.

• For use with rigging lines up to 16mm
• 25 kN WLL / 125 kN MBS
• Hot forged aluminum side plates with rope friendly rounded cheeks
• Precision CNC machined aluminum sheaves with wide bend radii
• Low profile, secure, easy-to-open two-stage captive spring pin lock
• High wall, full diameter, improved anchor sling protection
• Wide, concave upper sheave accepts 25mm anchor slings
• Flared sideplates reduce twisting in complex rigging scenarios
