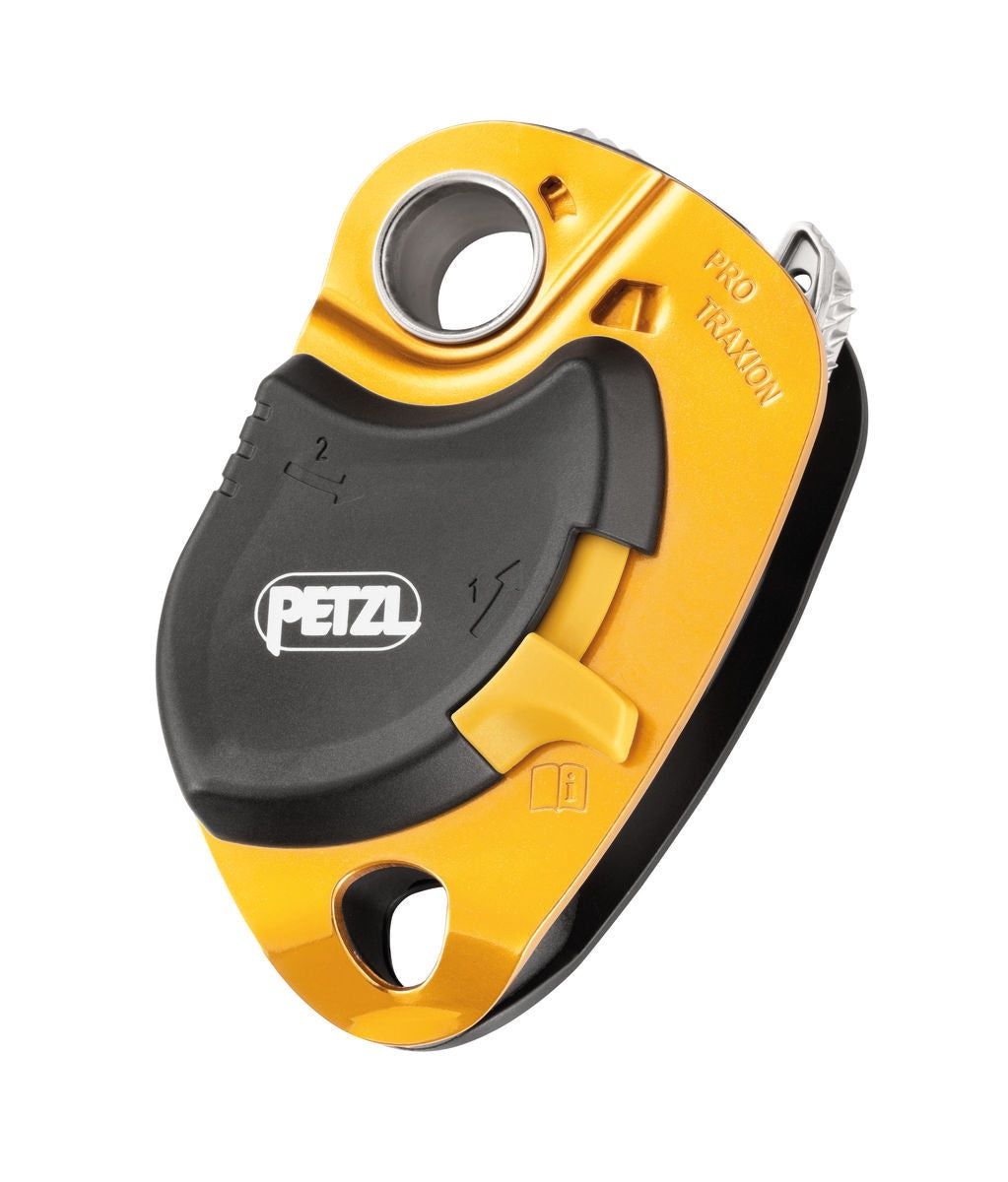

Loss-resistant pulley, allows a rope to be installed when the pulley is connected to the anchor
Well suited for hauling heavy loads as it has a large diameter aluminium sheave mounted on sealed ball bearings for excellent efficiency. Side plate locks when loaded and prevents opening of the pulley during use
Lower connection point for creating different types of hauling systems
Toothed cam with self-cleaning slot optimizes performance under any conditions
May be used as simple pulley by locking the cam in the raised position
Excellent for in a mechanical advantage system for pulling trees over
Specifications
Weight: 265 g
Certification(s): CE EN 567
Material(s): aluminum, stainless steel, nylon
Min. rope diameter: 8 mm
Max. rope diameter: 13 mm
Sheave type: sealed ball bearings
Sheave diameter: 38 mm
Working load: 2 x 2,5 = 5 kN
Breaking strength: 2 x 11 = 22 kN
Working load as progress capture pulley: 2,5 kN
Breaking strength as progress capture pulley: 4 kN
